Understanding Sheet Metal Bending

What is Sheet Metal Bending?

Sheet metal bending is a metal forming process where force is applied to a sheet of metal, causing it to bend at an angle without breaking. The process is used to create L, U, and V shapes, as well as more complex geometries, to fit a wide range of applications.

Why is Bending Important?

Sheet metal bending is essential because:

• It enhances the structural strength of metal components
• It allows for precise shaping without the need for welding multiple parts
• It reduces material waste, making it cost-effective
• It enables custom designs in construction, machinery, electronics, and more

Bending is one of the most cost-effective and versatile fabrication techniques, making it a preferred choice for various industries.

Best Materials for Sheet Metal Bending

Not all metals are created equal when it comes to bending. The best materials exhibit good ductility and malleability. Below are some of the most suitable options:

1. Carbon Steel

Highly flexible and strong. Recyclable, environmentally friendly, and commonly used across multiple industries.

2. Aluminum

Lightweight, corrosion-resistant, and easy to form. Requires careful handling to avoid cracking, especially at corners.

3. Stainless Steel

Strong and durable, but requires high tonnage machines to bend. Suitable for high-strength and aesthetic applications.

4. Titanium

Exceptional strength-to-weight ratio and corrosion resistance. Used in aerospace, sports equipment, and medical devices.

5. Copper

Excellent for high-precision bends. Cost-effective and highly corrosion-resistant. Frequently used in electrical enclosures and plumbing.

Each material must be evaluated for tensile strength, ductility, bend radius, and thickness before proceeding with fabrication.

Common Sheet Metal Bending Techniques

Different bending techniques are used depending on the metal type, thickness, and final product requirements. Here are the most common techniques used in the industry:

a) Air Bending

Air bending is a flexible and widely used method where a punch presses the sheet metal into a die without making full contact with it. The amount of force applied determines the final angle of the bend.

• Advantages:
  • Requires less force compared to other techniques
  • Can produce multiple angles using the same toolset
  • Reduces wear and tear on the machine
• Disadvantages:
  • Less precise than other methods
  • Requires additional calibration for accuracy

b) Bottoming (Bottom Die Bending)

In this technique, the sheet metal is pressed entirely into the die to achieve a specific angle. Unlike air bending, bottoming ensures greater accuracy and consistency.

• Advantages:
  • Produces highly accurate bends
  • Less springback effect (metal returning to its original shape)
• Disadvantages:
  • Requires different dies for different angles
  • Increased tooling costs

c) Coining

Coining is a high-precision technique where extreme pressure is applied to press the sheet metal completely into the die. This process imprints the exact angle, ensuring little to no springback.

• Advantages:
  • Most accurate bending method
  • Minimal springback
  • Perfect for high-precision applications like aerospace and medical devices
• Disadvantages:
  • Requires high tonnage (more force)
  • Expensive tooling and operational costs

d) V-Bending

V-bending is performed using a V-shaped punch and die, creating bends at various angles. It is a versatile and cost-effective method.

• Advantages:
  • Simple and widely used
  • Works with various metal thicknesses
• Disadvantages:
  • Less precision compared to bottoming and coining

e) U-Bending

Similar to V-bending, U-bending uses a U-shaped die to form rounded bends. It is commonly used for making tubes and enclosures.

f) Roll Bending

Roll bending is used for gradual bends and forming curved parts. It involves three rollers that shape the metal into cylindrical or conical forms.

• Applications:
  • Pipes and tubes
  • Large construction components

g) Wipe Bending

Wipe bending uses a wiper die to force the sheet metal over the edge of a die. This method is ideal for creating sharp bends.

• Advantages:
  • Provides consistent bends
  • Reduces metal stretching
• Disadvantages:
  • Requires precise tooling
  • Can cause material deformation if not done correctly

What Is a Bending Machine?

A bending machine, sometimes called a metal forming machine, is a type of equipment used to bend and shape materials such as sheet metal, tubes, rods, or profiles. Instead of relying on manual force or forging as in the past, modern bending machines use hydraulic, pneumatic, or motor-driven systems to generate controlled pressure, ensuring consistent and accurate results.

These machines are widely used in manufacturing, automotive, aerospace, construction, shipbuilding, and many other sectors. Depending on the job’s complexity, different types of bending machines and techniques are employed to achieve desired shapes and angles.

How Does a Bending Machine Work?

The working principle of a bending machine is based on applying a force—usually by a punch pressing into a die—causing the metal to deform and bend at a specific angle or radius.

Key components of a typical bending machine include:

• Punch – The upper tool that presses the material.
• Die – The lower tool that supports the material and defines the bending angle.
• Clamp/Brake – Holds the workpiece in place during the process.
• Frame & Motor System – Provides structural support and powers the motion.

Modern machines often incorporate CNC (Computer Numerical Control) technology to enable automation, precision, and repeatability. By programming specific parameters into the machine, operators can produce high volumes of accurately bent products with minimal human intervention.

Types of Bending Machines

There are several types of bending machines designed to meet different application needs. Here’s an in-depth look at the most common ones:

1. Pipe and Tube Bending Machine

Pipe and tube bending machines are designed to bend cylindrical objects into curves or angles. These machines are used extensively in plumbing, construction, and industrial piping.

• Rotary Draw Benders – These machines use a rotating die to draw the pipe into a bend.
• Roll Benders – Suitable for large-radius bends using multiple rollers.
• Compression Benders – Simple and cost-effective for basic applications.

Use Case: HVAC ductwork, furniture frames, vehicle exhaust systems.

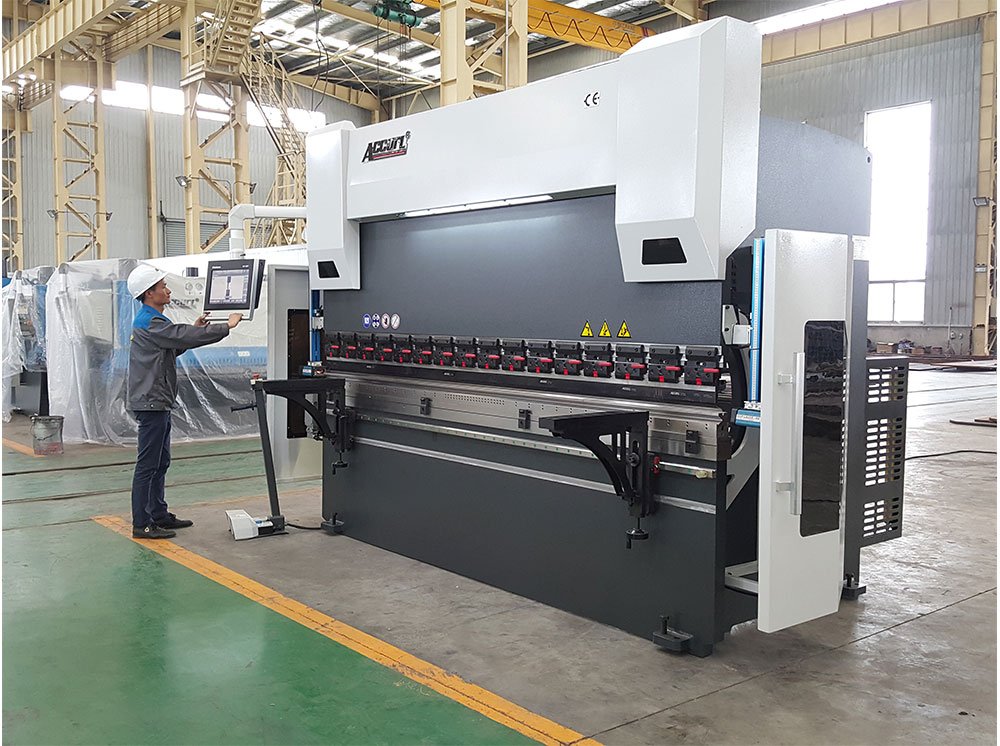

2. Press Brake

The press brake is one of the most commonly used bending machines in fabrication workshops. It applies force using a punch and die set, bending the sheet metal at precise angles.

• Hydraulic Press Brake – Powered by hydraulic systems, ideal for high-force applications.
• Electric Press Brake – Uses servo motors, offering energy efficiency and faster cycle times.
• Mechanical Press Brake – Driven by mechanical gears, used in traditional setups.

Use Case: Sheet metal panels, enclosures, frames, and architectural components.

3. Plate Rolling Machine

This machine rolls flat metal plates into curved or cylindrical shapes. It’s composed of three or four rollers arranged to apply pressure and curvature to the metal.

• Three-Roller Machines – Standard configuration for basic rolling tasks.
• Four-Roller Machines – Offers better control and handling of thicker materials.

Use Case: Storage tanks, pressure vessels, HVAC ducts, and metal pipes.

4. Folding Machine

Folding machines bend metal sheets by clamping the material and folding it along a straight axis using a pivoting tool. This technique provides high accuracy and is ideal for complex or delicate work.

Use Case: Electrical cabinets, signage, metal furniture, and kitchen equipment.

5. Manual Bending Machine

For small-scale or low-volume projects, manual bending machines offer a cost-effective solution. These machines are hand-operated and best suited for light-gauge materials.

Use Case: DIY metal projects, prototypes, and repair shops.

Key Components of a Bending Machine

Understanding the components of a bending machine will help you maintain and optimize it for better performance:

• Frame: Provides structure and stability.
• Ram/Punch Mechanism: Moves vertically to apply pressure.
• Die: Supports the workpiece and determines the shape of the bend.
• Back Gauge: Helps position the sheet accurately.
• Control Panel: Lets the operator program and control machine functions.
• Hydraulic/Pneumatic System: Powers the motion (for hydraulic or pneumatic models).

Factors Affecting Bending Quality

Several factors influence the success and precision of sheet metal bending:

1) Material Type and Thickness

• Softer metals (like aluminum) require less force
• Harder metals (like stainless steel) may require higher tonnage and specialized dies

2) Bend Radius

• A smaller bend radius may cause cracking
• A larger bend radius reduces stress and improves durability

3) Springback Effect

• Some metals try to return to their original shape after bending
• Compensation techniques like over-bending or coining help reduce springback

4) Tooling and Die Selection

• The right punch and die combination ensures precision and consistency

5) Machine Accuracy and Calibration

• CNC press brakes and automated bending machines improve repeatability and efficiency

Tips for Better Sheet Metal Bending

To avoid material failure and reduce wastage, consider the following tips:

✔ Use Bend Allowance

Bend allowance is the length of material required to make a bend. Calculating this ensures better fitting and accurate flattened patterns.

✔ Heat Treatment for Thick Materials

Use annealing or hot bending for materials prone to cracking. Heating increases malleability and reduces stress.

✔ Avoid Sharp Internal Corners

Maintain the bend radius equal to or greater than the material thickness to prevent fractures.

✔ Choose Proper Tooling

Use the right die-punch combination for your material and desired angle. Improper tooling can lead to defects or wasted sheets.

Challenges in Sheet Metal Bending and Solutions

Challenge 1: Metal Cracking

Solution: Use a larger bend radius and apply heat treatment for brittle materials.

Challenge 2: Inconsistent Angles

Solution: Ensure proper die alignment and use computer-controlled machines for accuracy.

Challenge 3: Surface Damage

Solution: Use protective films or polished dies to minimize scratches and marks.

How Much Does Sheet Metal Bending Cost?

The cost of sheet metal fabrication and bending depends on several factors:

• Material Type & Thickness: Stainless steel and titanium cost more to process due to strength and machine requirements.
• Bend Complexity: More bends and tighter tolerances increase machine time.
• Batch Volume: Larger orders benefit from economies of scale.
• Tooling Setup: Custom dies and punches cost more to set up initially.

Estimated Cost Ranges (Malaysia Market):
